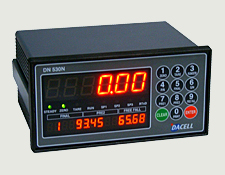

韓國Dacell儀錶DN-530n

价格 电议
更新时间
2019-02-08 05:45:02
起订量
1件起批
服务
 资质已审查
发货地
上海市 嘉定区
货期
近期热度
次浏览

产品介绍



  • SPECIFICATIONS
Specifications Accuracy
Load cell excitation 10VDC±5% 320mA
A/D converting speed 200times/sec
A/D converter resolution : 1/520000 counts(19bits) ΔΣ
Non-linearity 0.01% of full scale
Zero adjustment range -0.6mV~42mV
Disy Unit 7 segment 20.0mm(H)×13.0(W)mm
Annunciator steady zero tare Run SP1 SP2 hold Interface
Decimal point position 0 0.0 0.00 0.000
Keyboard Number key and function key 12 PCS.
Temperature-drift zero ±20PPM/℃ span ±20PPM/℃
Non-linearity 0.01% of full scale
Rear panel Loadcell input : 5pin connector
External control : 12pin input terminal
  (zero tare tare reset/hold/print gross/hold reset/subprint Current loop
  RS232C)
control relay output : 7pin terminal
Power SMPS Free Voltage (85V~265V)

Option
① Analog Out-put (V-out) : 0~10V
② Analog Out-put (I-out) : 4~20mA
③ Serial I / F : RS-422 RS-485
④ BCD In-put
⑤ BCD In-out
※ RS3232C and Current loop : Standard Installed
  • DIMENSIONS
