称重传感器RCB-日本昭和SHOWA |RCB称重传感器。 的详细介绍 称重传感器RCB-日本昭和SHOWA |RCB称重传感器。
Features - High reliability and for versatile applications.
- Most suitable for use in material testing machines.
- Ample achievements in the sale and Low costs.
- Wide capacity ranges (50N to 5kN).
- Complete with a Load Button for compression use.
- Accuracy class: 0.15%.

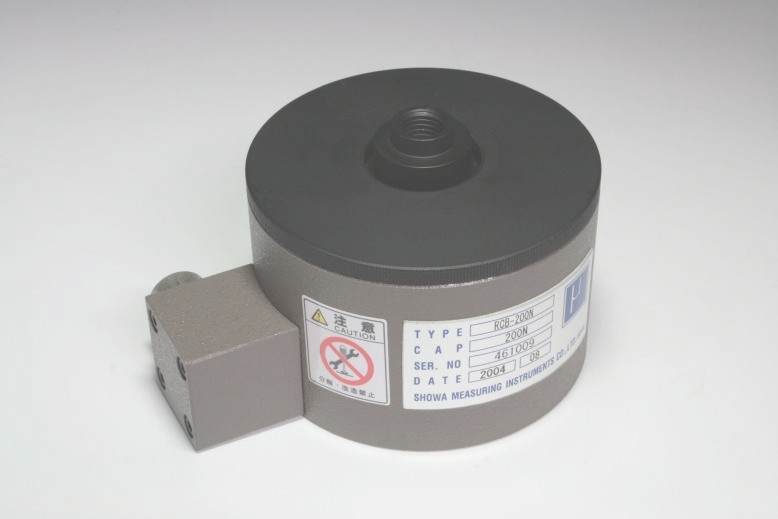

Appearance Dimensions  Model and Capacity / Dimension / etc. (unit : mm) | Model | Capacity | Natural frequency | Weight | | RCB-50N | 50N | 0.3kHz | 2.0kg | | RCB-100N | 100N | 0.6kHz | 2.1kg | | RCB-200N | 200N | 0.9kHz | 2.1kg | | RCB-500N | 500N | 1.3kHz | 2.1kg | | RCB-1KN | 1kN | 1.9kHz | 2.1kg | | RCB-2KN | 2kN | 2.5kHz | 2.3kg | | RCB-5KN | 5kN | 4.7kHz | 2.3kg | Model and Capacity / Dimension / etc. (unit : mm) Model | Capacity | Natural frequency | Weight | | RCB-50N | 50N | 0.3kHz | 2.0kg | | RCB-100N | 100N | 0.6kHz | 2.1kg | | RCB-200N | 200N | 0.9kHz | 2.1kg | | RCB-500N | 500N | 1.3kHz | 2.1kg | | RCB-1KN | 1kN | 1.9kHz | 2.1kg | | RCB-2KN | 2kN | 2.5kHz | 2.3kg | | RCB-5KN | 5kN | 4.7kHz | 2.3kg | Model and Capacity / Dimension / etc. (unit : mm) Model Capacity Natural frequency Weight
RCB-50N 50N 0.3kHz 2.0kg
RCB-100N 100N 0.6kHz 2.1kg
RCB-200N 200N 0.9kHz 2.1kg
RCB-500N 500N 1.3kHz 2.1kg
RCB-1KN 1kN 1.9kHz 2.1kg
RCB-2KN 2kN 2.5kHz 2.3kg
RCB-5KN 5kN 4.7kHz 2.3kg
Specifications
Safe Overload 150％RC
Rated Output 1.5mV/V±1％
Nonlinearity 0.15%RO
Hysteresis 0.15%RO
Repeatability 0.1%RO
Excitation Voltage 10V (or less)
Safe Excitation Voltage 15V
Input Rsistance 350Ω
Output Rsistance 350Ω
Compensated Temp.Range －10 to 60℃
Safe Temp.Range －30 to 80℃
Temp.Effect on Zero 0.01%RO/℃
Temp.Effect on Output 0.01%/℃
Connector(on body) Receptacle / PRC03-21A10-7F
Attached cable L-A-5 (Refer to transducer connections) | Safe Overload | 150％RC | | Rated Output | 1.5mV/V±1％ | | Nonlinearity | 0.15%RO | | Hysteresis | 0.15%RO | | Repeatability | 0.1%RO | | Excitation Voltage | 10V (or less) | | Safe Excitation Voltage | 15V | | Input Rsistance | 350Ω | | Output Rsistance | 350Ω | | Compensated Temp.Range | －10 to 60℃ | | Safe Temp.Range | －30 to 80℃ | | Temp.Effect on Zero | 0.01%RO/℃ | | Temp.Effect on Output | 0.01%/℃ | | Connector(on body) | Receptacle / PRC03-21A10-7F | | Attached cable | L-A-5 (Refer to transducer connections) | | Safe Overload | 150％RC | | Rated Output | 1.5mV/V±1％ | | Nonlinearity | 0.15%RO | | Hysteresis | 0.15%RO | | Repeatability | 0.1%RO | | Excitation Voltage | 10V (or less) | | Safe Excitation Voltage | 15V | | Input Rsistance | 350Ω | | Output Rsistance | 350Ω | | Compensated Temp.Range | －10 to 60℃ | | Safe Temp.Range | －30 to 80℃ | | Temp.Effect on Zero | 0.01%RO/℃ | | Temp.Effect on Output | 0.01%/℃ | | Connector(on body) | Receptacle / PRC03-21A10-7F | | Attached cable | L-A-5 (Refer to transducer connections) | |
